SLAMAIR SHOCKS

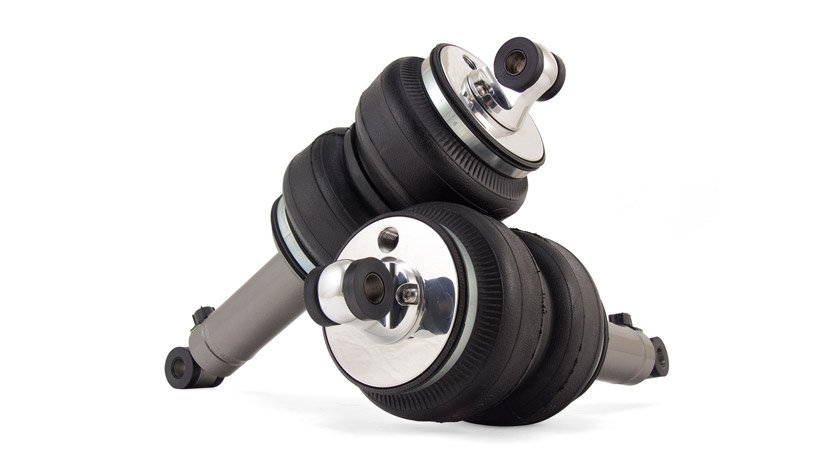

BELLOWS STYLE – SHORT


  • Bellows Style Air Spring
  • 9-way adjustable damping
  • Compressed Length: 8.85 / 8.51
  • Extended Length: 11.83 / 11.49
  • Finish: Black Powdercoat
  • Total Stroke: 2.58
  • Load Capacity: 1790 lbs. @ 100 PSI
  • Designed Ride Height: 9.5″ – 10.5″

BELLOWS STYLE – MEDIUM


  • Bellows Style Air Spring
  • 9-way adjustable damping
  • Compressed Length: 10.05 / 9.71
  • Extended Length: 14.23 / 13.89
  • Finish: Black Powdercoat
  • Total Stroke: 3.78
  • Load Capacity: 1840 lbs. @ 100 PSI
  • Designed Ride Height: 11.5″ – 12.5″

BELLOWS STYLE – LONG


  • Bellows Style Air Spring
  • 9-way adjustable damping
  • Compressed Length: 11.45 / 11.11
  • Extended Length: 17.03 / 16.69
  • Finish: Black Powdercoat
  • Total Stroke: 5.18
  • Load Capacity: 1730 lbs. @ 100 PSI
  • Designed Ride Height: 13.9″ – 15.0″

BELLOWS STYLE – XL


  • Bellows Style Air Spring
  • 9-way adjustable damping
  • Compressed Length: 13.00 / 12.66
  • Extended Length: 19.00 / 18.66
  • Finish: Black Powdercoat
  • Total Stroke: 5.60
  • Load Capacity: 1690 lbs. @ 100 PSI
  • Designed Ride Height: 15.0″ – 17.0″

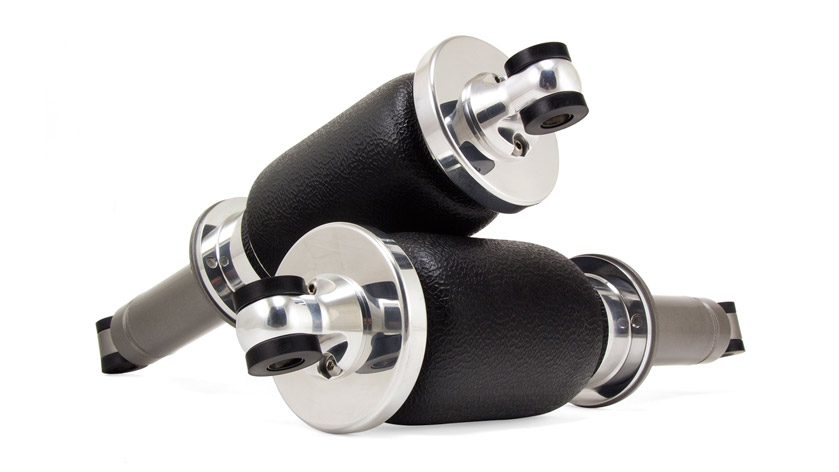

SLEEVE STYLE – SHORT


  • Sleeve Style Air Spring
  • 9-way adjustable damping
  • Compressed Length: 9.35 / 9.01
  • Extended Length: 12.33 / 11.99
  • Finish: Black Powdercoat
  • Total Stroke: 2.58
  • Load Capacity: 940 lbs. @ 100 PSI
  • Designed Ride Height: 10.5″ – 11.0″

SLEEVE STYLE – MEDIUM


  • Sleeve Style Air Spring
  • 9-way adjustable damping
  • Compressed Length: 10.55 / 10.21
  • Extended Length: 14.73 / 14.39
  • Finish: Black Powdercoat
  • Total Stroke: 3.78
  • Load Capacity: 980 lbs. @ 100 PSI
  • Designed Ride Height: 12.0″ – 13.0″

SLEEVE STYLE – LONG


  • Sleeve Style Air Spring
  • 9-way adjustable damping
  • Compressed Length: 11.95 / 11.61
  • Extended Length: 17.53 / 17.19
  • Finish: Black Powdercoat
  • Total Stroke: 5.18
  • Load Capacity: 900 lbs. @ 100 PSI
  • Designed Ride Height: 14.0″ – 16.0″

SLEEVE STYLE – XL


  • Sleeve Style Air Spring
  • 9-way adjustable damping
  • Compressed Length: 13.50 / 13.16
  • Extended Length: 19.50 / 19.16
  • Finish: Black Powdercoat
  • Total Stroke: 5.60
  • Load Capacity: 985 lbs. @ 100 PSI
  • Designed Ride Height: 16.0″ – 18.0″

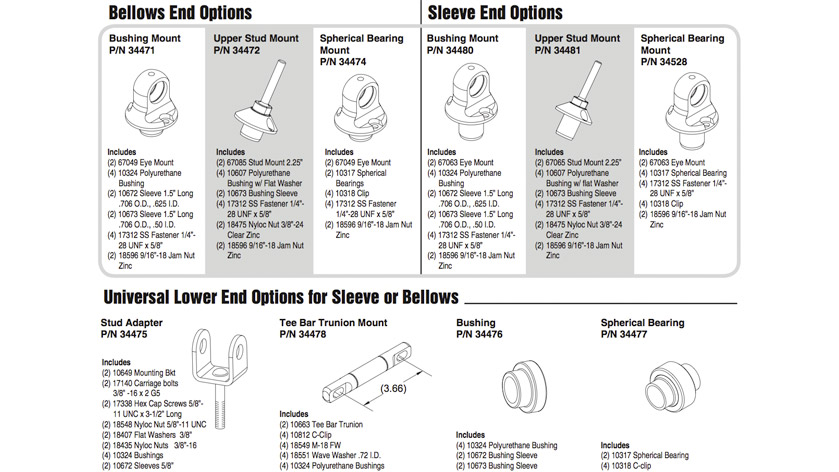

SLAMAIR MOUNTING


  • UPPER AND LOWER END OPTION

HOW TO ORDER


  • With four different lengths and multiple end mounting options, Air Lift Performance SlamAir shocks can be tailored to fit almost any application

SLAMAIR SHOCK

Whether you have a custom chassis or hot rod, Air Lift Performance has the solution to your air suspension needs. Air Lift Performance SlamAir shocks are designed to mount in place of the coil springs and shocks to give you the ground hugging stance you are looking for while retaining drivability.

Air Lift Performance double bellow style SlamAir shocks are normally used in the front of a vehicle in order to support the weight. While the sleeve style SlamAir shocks can be found in the rear to ensure the best possible ride quality. Along with the ability to adjust height, these twin tube shocks also have 9 different damping settings to fine tune the ride comfort and handling performance to your personal taste.

With four different lengths and multiple end mounting options, Air Lift Performance SlamAir shocks can be tailored to fit almost any application.


Select your Air Management
